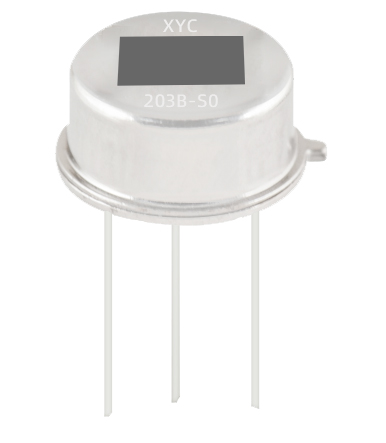

XYC-PIR203B-S0 這款抗干擾抗白光的PIR熱釋電紅外傳感器是如何做到高靈敏度和優越信噪比的？
首先它是利用溫度變化的特征來探測紅外線的輻射，
其次他是采用雙元補償?shù)姆椒ㄒ种茰囟茸兓a(chǎn)生的干擾，提高了傳感器的工作穩定性。
再者它采用阻容濾波電路、阻容選頻電路，增強了傳感器的電磁兼容性，使傳感器對射頻干擾（RFI）的抗擾度高，
所以這款產品應用廣泛，例如防盜報警器、感應門、自動燈具、智能玩具、安防監控?cái)z像機等。

The XYC-PIR203B-S0 pyroelectric infrared sensor uses the characteristic of temperature change to

detect the infrared radiation,it uses the binary compensation method to

suppress the interference caused by the temperature change, thereby

improving the working stability of the sensor. The resistance-capacitance

filtering circuit and the resistance-capacitance frequency selective circuit are

used to enhance the electromagnetic compatibility of the sensor, so that the

sensor has higher immunity to radio frequency interference (RFI). The

product can be used in burglar alarms, induction doors, automatic

lamps,intelligent toys and security surveillance cameras, etc.

特性 Feature

 高靈敏度和優越的信噪比；High sensitivity and superior signal to noise ratio

 采用雙元補償結構，有效抵抗外界環境干擾；Adopting binary compensation structure to resist external environmental interference effectively

 干涉濾光片截止深度高，抗白光能力強；Interference filter has high cut-off depth and strong white light resistance

 采用阻容濾波電路，增強抗射頻干擾能力;Using resistance-capacitance filtering circuit,increase anti RFI abilities.

應用 Application

 適用于各類自動照明開關；Applicable to all types of automatic lighting switches

 適用于各類防盜報警用入侵探測器 ；Applicable to all kinds of intrusion detectors for burglar alarms

 適用于各類智能玩具；Applicable to all kinds of smart toys

 適用于各類智能家用電器 ； Applicable to all kinds of smart household appliances

優勢 Advantages

 品種齊全,生產周期短,小批量庫存?zhèn)湄?Complete varieties, short production cycle,Prepared small batch inventory

 嚴格的品質保障體系，讓您使用無憂 Strict quality assurance system

 提供全方位的技術支持服務 Provide a full range of technical support
